Hot DIP Galvanized Steel Stay Rod

Bow type stay rod assemblies for

overhead line guying, connecting

stay wires to ground anchoring

components with a threaded

tension adjustment mechanism.

Category: Power Fittings

Product Details

1 Product Attributes （General specification）

Product Name	Plate Type Stay Anchor, Earth Anchor Assembly
Standard	Power fitting industry custom specification
Material	Carbon Steel Q235
Surface Treatment	Hot-dip Galvanized (HDG) anti-corrosion treatment

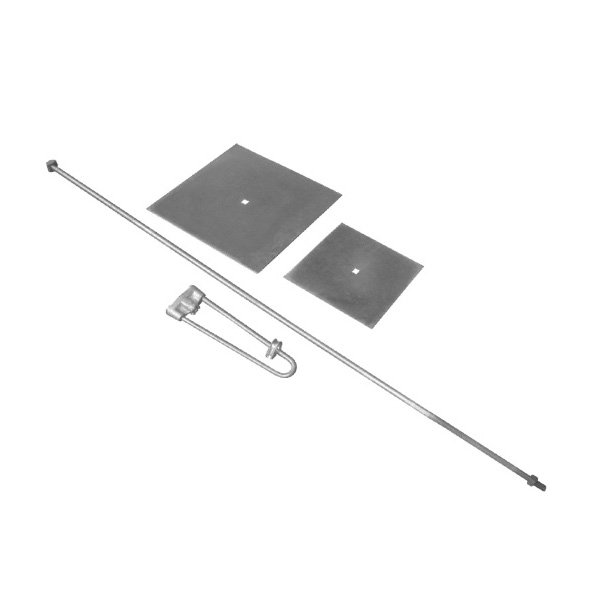

Structure	Anchor plate + long pull rod + U-shaped shackle / guy clip assembly, integrated set
Origin	Hebei · Handan · Yongnian — Integrated Manufacturer & Exporter
MOQ	500 Sets (negotiable for trial orders)

2 Performance Parameter （Reference data）

Tensile Strength	≥400 MPa
Yield Strength	≥240 MPa
Galvanized Coating Thickness	≥85μm
Load Feature	High pulling resistance, stable anchoring performance in soil
Working Temperature	-40 ℃ ~ +120 ℃

3 Optional Types

Square plate anchor	Common flat square steel plate, widely used for general soil foundation anchoring
Custom size plate anchor	Custom plate size, rod diameter and total length according to customer tension requirement

4 Size Table （Common models）

Common specifications of plate stay anchor, dimensions for reference only, customized sizes available.

Model	Rod Diameter(mm)	Plate Size(mm)	Total Length(mm)	Surface Finish
SA-M16	16	250×250	1500	Hot-dip Galvanized
SA-M18	18	300×300	1800	Hot-dip Galvanized
SA-M20	20	300×300	2000	Hot-dip Galvanized
SA-M22	22	350×350	2200	Hot-dip Galvanized
SA-M24	24	350×350	2500	Hot-dip Galvanized

5 Applications & Packaging

Applications	Overhead distribution lines, transmission pole stay wire anchoring, guy wire fixing. Buried underground to provide reliable pull resistance for stay wires, stabilize utility poles.
Packaging	Plastic bags + cartons, pallet packing for bulk shipment
Documents	PI, Packing List, Certificate of Origin, Material Test Certificate
Payment Terms	30% T/T in advance, balance before shipment
Lead Time	10 – 18 days according to models and quantity
