Hot Dip Galvanized Cutout and Arrester Mounting Bracket

Category: Power Fittings

Product Details

1 Product Attributes （General specification）

Product Name	Lightning Arrester Mounting Bracket, Drop-out Cutout Fuse Support
Standard	Overhead line power fittings industry custom specification
Material	Carbon Steel Q235, steel plate bent / welded structure
Surface Treatment	Hot-dip Galvanized (HDG), anti-corrosion for outdoor pole mounting

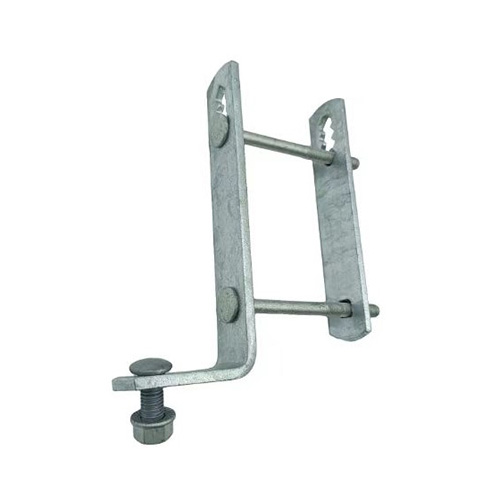

Structure	Two vertical side plates + two horizontal through-bolts + bottom fixing bolt, welded one-piece frame
Origin	Hebei · Handan · Yongnian — Integrated Manufacturer & Exporter
MOQ	300 Sets (negotiable for trial orders)

2 Performance Parameter （Reference data）

Plate Thickness	5–6 mm (customizable)
Galvanized Layer Thickness	≥85μm
Mounting Bolts	M12 / M16 hot-dip galvanized
Load Capacity	Designed per arrester / cutout weight and wind load
Working Temperature	-40 ℃ ~ +120 ℃

3 Optional Types

Standard arrester bracket	Common size for 10kV surge arrester and drop-out cutout, widely used in distribution lines
Custom bracket	Custom plate width, hole spacing, bolt length according to arrester model and pole type

4 Size Table （Common models）

Common specifications of arrester / cutout mounting bracket, dimensions for reference only, customized sizes available.

Model	Plate Size(mm)	Hole Spacing(mm)	Fixing Bolt	Surface Finish
AB-10	300×50	150	M12	Hot-dip Galvanized
AB-12	350×60	180	M12	Hot-dip Galvanized
AB-16	400×60	200	M16	Hot-dip Galvanized
AB-20	450×70	220	M16	Hot-dip Galvanized

5 Applications & Packaging

Applications	Mounting surge arresters (lightning arresters) and drop-out cutout fuses on distribution poles, 10kV overhead distribution lines, transformer platforms.
Packaging	Plastic bags + cartons, pallet packing for bulk shipment
Documents	PI, Packing List, Certificate of Origin, Material Test Certificate
Payment Terms	30% T/T in advance, balance before shipment
Lead Time	10 – 18 days according to models and quantity
