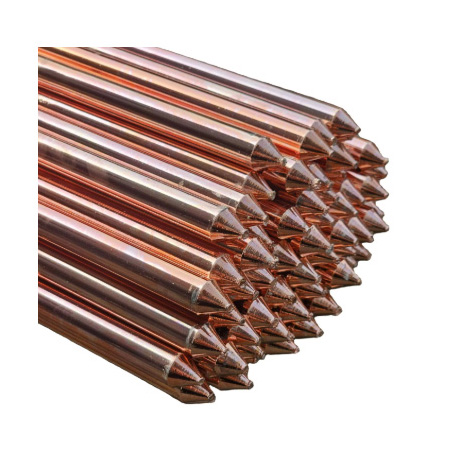

Copper-bonded steel ground rod with a smooth shaft and pointed tip for electrical earthing systems. Specify rod dimensions and copper thickness for quotation.
WhatsApp：+86 17733036295
E-mail：info@kangnaigu.net
Phone Line：+86 13333199538
Address：Dalian Office, Shahe City, Xingtai City, Hebei Province
Copper-bonded steel ground rod with a smooth shaft and pointed tip for electrical earthing systems. Specify rod dimensions and copper thickness for quotation.
| Product Name | Copper Bonded Ground Rod, Copper Clad Steel Earth Rod |
| Standard | GB/T 50057, UL467 |
| Material | Low carbon steel core with electrolytic copper outer layer |
| Surface Treatment | Copper cladding, no peeling, uniform copper thickness |
| Structure | Round bar with tapered tip, thread or plain top optional |
| Origin | Hebei · Handan · Yongnian — Integrated Manufacturer & Exporter |
| MOQ | 100 Pcs (negotiable for trial orders) |
| Copper Thickness | 0.25mm / 0.5mm / 1.0mm optional |
| Tensile Strength | High mechanical strength, easy for driving into soil |
| Corrosion Resistance | Excellent anti-corrosion performance underground |
| Working Temperature | -40 ℃ ~ +80 ℃ |
| Plain tip ground rod | Tapered sharp end, smooth top, direct driving |
| Threaded ground rod | One end tapered tip, the other end external thread, connectable by coupler |
| Ground rod with driving head | Matched driving cap for installation protection |
| Diameter(mm) | Length(mm) | Copper Thickness |
|---|---|---|
| 14.2 | 1200 / 1500 / 1800 / 2400 | 0.25 / 0.5 / 1.0 mm |
| 16 | 1200 / 1500 / 1800 / 2400 | 0.25 / 0.5 / 1.0 mm |
| 17.2 | 1200 / 1500 / 1800 / 2400 | 0.25 / 0.5 / 1.0 mm |
| 20 | 1200 / 1500 / 1800 / 2400 | 0.25 / 0.5 / 1.0 mm |
| Applications | Used for grounding and lightning protection system of power station, substation, photovoltaic project, building, communication tower. |
| Packaging | Woven bag or wooden case |
| Documents | PI, Packing List, Certificate of Origin, Mill Test Certificate |
| Payment Terms | 30% T/T in advance, balance before shipment |
| Lead Time | 10 – 18 days according to specs and quantity |
Please advise diameter, length and copper thickness. We supply copper bonded earth rods for grounding and lightning protection projects.
